Yes I will try whatever and do not mind being the guinea pig for future people. I will document it too as needed too. The shop is putting everything back together and charging me four hours labor :rolleyes:, but I don't mind tearing things apart myself.

Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#22
The best I found was for a max cruz, which is the santa fe xl. Would you like to do some trial and error? Worst case would be a blown fuse.
actually, let me ask some people I know in Korea. Ill get back to you soon.
I am willing to try anything and will document whatever for future people wanting to add this.

Messages
113
Reactions
24
Location
Glendale, AZ, USA
What I Drive
2018 Genesis G90 ultimate
#23
the dealers tech should be able to down load the wiring diagram from https://www.hyundaitechinfo.com/ for you.
If he agrees to download the wiring for you have him down load the wiring for your rear light also

Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#24
the dealers tech should be able to down load the wiring diagram from https://www.hyundaitechinfo.com/ for you.
If he agrees to download the wiring for you have him down load the wiring for your rear light also
I actually paid for this and have that info, but nothing was helpful to the dealer. I am not sure if I just happened across a tech that doesn't experiment or clueless. I can put that info up here but I am not sure if that actually helps since these items were not in the original wiring and require wire taps or splicing. Knowing what wires to tap in to is the crucial part that is missing. If I am incorrect in this statement by all means please let me know.

Messages
113
Reactions
24
Location
Glendale, AZ, USA
What I Drive
2018 Genesis G90 ultimate
#25
Do you know which wires on the cooler/heater are ground and + wires?
If you have the wiring diagram and post it on here. Someone may be able to help
Maybe take a picture of the wires for the cooler/heater

Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#26

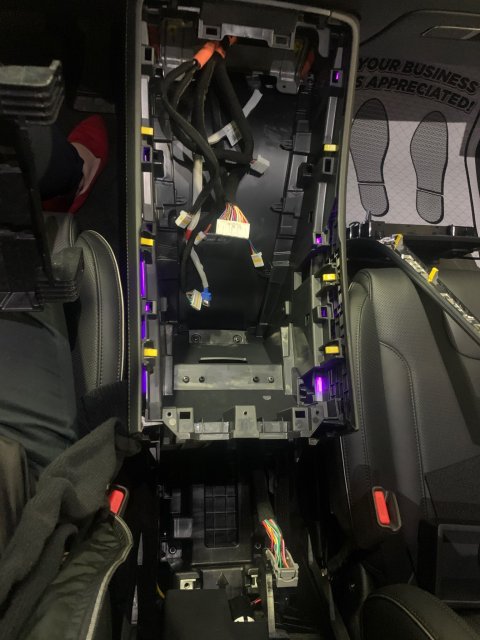

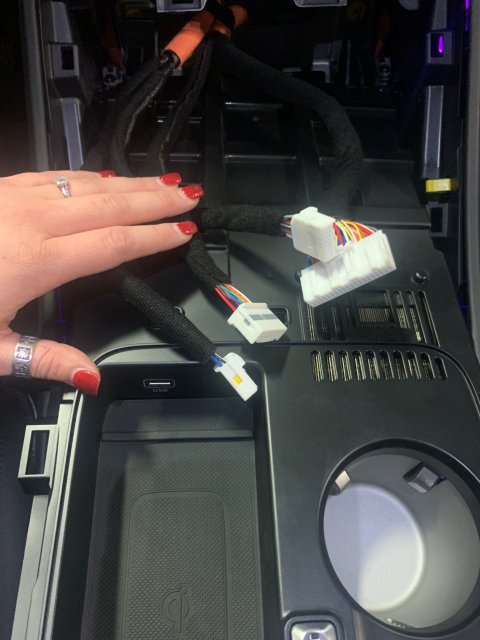

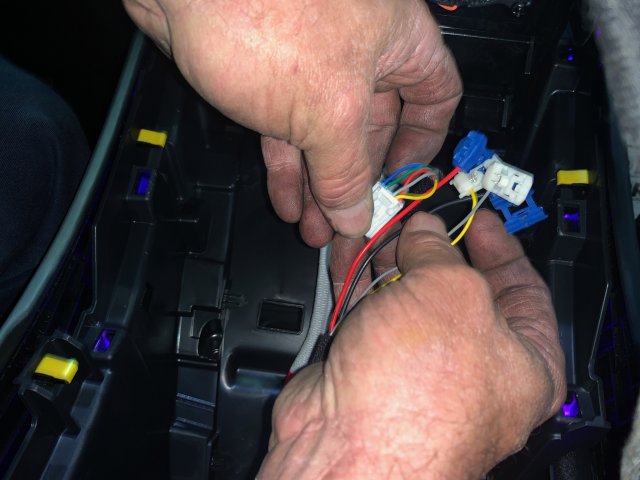

597701381.jpg 597701393.jpg 597701428.jpg 597701439.jpg


Resized_Screenshot 2019-12-10 09.25.42_231284024545249.jpeg

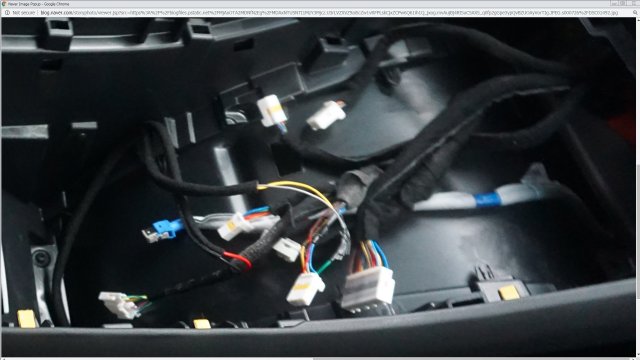

The above picture is the only one that I have seen with the wiring for this thanks to imxkal , but it is unclear where those wires actually go.


Last edited:
Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#27
Do you know which wires on the cooler/heater are ground and + wires?
If you have the wiring diagram and post it on here. Someone may be able to help
Maybe take a picture of the wires for the cooler/heater
That is the problem I have been struggling with everything that came with this was in Korean and with the help of others it was determined that this was only operational instructions not installation instructions. I do have access to the HyundaiTechInfo site for another 15+ days, but I am not sure what there can help me.

OP
I
Messages
38
Reactions
12
Location
Eastvale, CA, USA
Thread Starter #28
That is the problem I have been struggling with everything that came with this was in Korean and with the help of others it was determined that this was only operational instructions not installation instructions. I do have access to the HyundaiTechInfo site for another 15+ days, but I am not sure what there can help me.
Sorry for the delay. Having two kids allows me no time for anything. Ill retrieve those max cruz wiring up today. Finally my Korean is coming in handy lol

OP
I
Messages
38
Reactions
12
Location
Eastvale, CA, USA
Thread Starter #29
Ok, it seems like there are 4 wires that need to be spliced into. According to the other installation guides I read for different hyundai vehicles.
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=59 Maxcruz
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=60 Tucson
These two seem to be just plug and play. But a little more info, one should be a 12pin connector that connects to the PRNG gear connector, which would show the led lights for the cup holder.
Let me draw up a wiring diagram in a bit.

EDIT - Good news. I find some kakaotalk contact info for hyundai mobis. I'll send them a message and request the installation guide.

Last edited:
Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#30
Ok, it seems like there are 4 wires that need to be spliced into. According to the other installation guides I read for different hyundai vehicles.
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=59 Maxcruz
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=60 Tucson
These two seem to be just plug and play. But a little more info, one should be a 12pin connector that connects to the PRNG gear connector, which would show the led lights for the cup holder.
Let me draw up a wiring diagram in a bit.
Thanks for your help on this, if you need access to the https://www.hyundaitechinfo.com/ let me know and I will give you my login.

Messages
113
Reactions
24
Location
Glendale, AZ, USA
What I Drive
2018 Genesis G90 ultimate
#31
Black is usually a standard negative wire and the red is the 12 volt plus side of power.
Not sure what the yellow and white are for.
Are you sure this will fit in the Palisade?
biggest problem looks like where are you going to put vents to dissipate the heat.
You will notice they have made cutouts for a vent cover.

Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#32
Black is usually a standard negative wire and the red is the 12 volt plus side of power.
Not sure what the yellow and white are for.
Are you sure this will fit in the Palisade?
biggest problem looks like where are you going to put vents to dissipate the heat.
You will notice they have made cutouts for a vent cover.

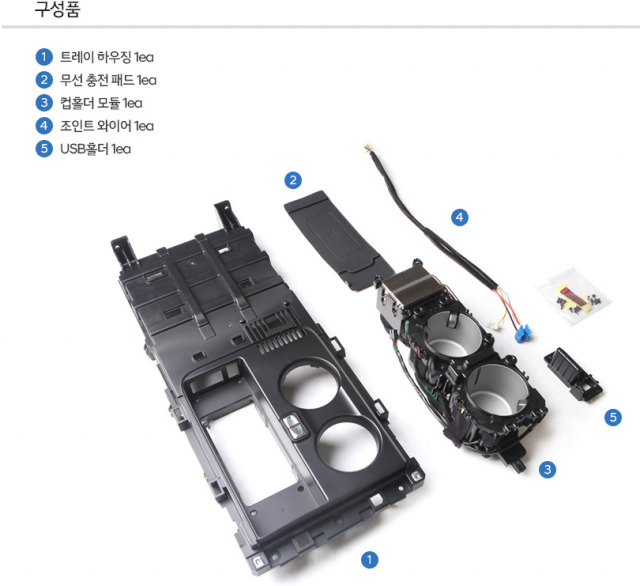

Yes this is specifically made for the palisade and eliminates the console from closing with this addition. http://www.tuixmall.com/product/view.do?pid=16270&pcid=3636

OP
I
Messages
38
Reactions
12
Location
Eastvale, CA, USA
Thread Starter #34
Messages
113
Reactions
24
Location
Glendale, AZ, USA
What I Drive
2018 Genesis G90 ultimate
#35
Hard to tell what the white and yellow wires are to . Does the unit have mood lamps inside? the two wires almost look like plug and play.
If only I could read Korean

Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#36
Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#37
Hard to tell what the white and yellow wires are to . Does the unit have mood lamps inside? the two wires almost look like plug and play.
If only I could read Korean
They have LED that change red or blue depending on mode you have it set to

Last edited:
Messages
57
Reactions
7
Location
Burleson, TX, USA
What I Drive
2020 Palisade Limited
#38
Ok, it seems like there are 4 wires that need to be spliced into. According to the other installation guides I read for different hyundai vehicles.
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=59 Maxcruz
http://www.tuixmall.com/info/installationview.do?type=car_shop&pk=60 Tucson
These two seem to be just plug and play. But a little more info, one should be a 12pin connector that connects to the PRNG gear connector, which would show the led lights for the cup holder.
Let me draw up a wiring diagram in a bit.

EDIT - Good news. I find some kakaotalk contact info for hyundai mobis. I'll send them a message and request the installation guide.
Did you ever receive any info about this?

Messages
61
Reactions
12
Location
Los Angeles, CA, USA
What I Drive
2020 Palisade
#39
You probably would have better luck with this by taking it to a higher end car stereo shop than to a Hyundai dealer
